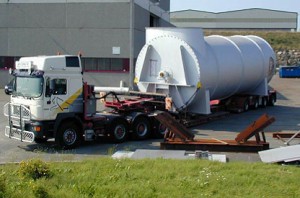

AMOF-FJELL THERMAL DISC DRYER
Data Sheet: Data Sheet Thermal Disc Dryer
Standard range of AMOF Fjell Rotating Disc Dryers
|Model||Heating surface||Overall dimensions||Approx. weight||Drive unit|
|cold stator||hot stator||rotor||stator||length x width x height||dry|
|AF-TD-S 10||AF-TD-S 10+||10 m2||2,5 m2||4.1 m x 1.0 m x 1.7 m||3 ton||5,5 kW|
|AF-TD-S 30||AF-TD-S 30+||33 m2||6 m2||5.8 m x 1.6 m x 1.5 m||7 ton||11 kW|
|AF-TD-S 50||AF-TD-S 50+||47 m2||7 m2||5.8 m x 2.0 m x 2.3 m||10 ton||22 kW|
|AF-TD-S 60||AF-TD-S 60+||58 m2||9 m2||6.9 m x 2.0 m x 2.3 m||11 ton||22 kW|
|AF-TD-S-90||AF-TD-S 90+||90 m2||12 m2||8.3 m x 2.0 m x 2.4 m||17 ton||37-55 kW|
|AF-TD-S-110||AF-TD-S 110+||110 m2||13 m2||8.0 m x 2.4 m x 2.6 m||25 ton||45-75 kW|
|AF-TD-S-170||AF-TD-S 170+||170 m2||17 m2||10.1 m x 2.4 m x 3.0 m||35 ton||90-110 kW|
|AF-TD-S-200||AF-TD-S 200+||200 m2||21 m2||11.2 m x 2.4 m x 3.0 m||45 ton||90-110 kW|
|AF-TD-S-300||AF-TD-S 300+||300 m2||29 m2||13.1 m x 2.5 m x 3.3m||52 ton||110-132 kW|
|AF-TD-S-400||AF-TD-S 400+||380 m2||33 m2||13.3 m x 3.0 m x 3.7m||77 ton||132-160 kW|
|AF-TD-S-500||AF-TD-S 500+||477 m2||39 m2||13.5 m x 3.2 m x 3.9m||95 ton||160-200 kW|
|AF-TD-S-600||AF-TD-S 600+||603 m2||46 m2||14.5 m x 3.5m x 4.0m||100 ton||160-200 kW|
The AMOF-Fjell Thermal Disc Dryer is an indirectly heated dryer for:
- Sludge in Waste Water Treatment Plants
- Fishmeal in both land based and ship installed plants
- Ingredients in the food industry
- Spent grains in distilleries and breweries
- Animal and poultry by products
- Industrial bio-sludge and mineral sludge
The dryer has a unique endurable rotor design without traditional welded stays exposed to tear, wear, fatigue and corrosion. Dryers can be supplied in all practical sizes, in all common materials of construction (carbon-, stainless-, and duplex steels), and approved and inspected according to the leading international design codes and standards (PED, ASME, JIS, GOST, DNV, Lloyds, Bureau Veritas etc.)
In 2012, the engineering department of Fjell Industries was moved to a new company called Fjell Technology. In 2014 Fjell Technology was merged with a company named AMOF, and our new name then became AMOF Fjell Process Technology. Our employees have long experience in calculating, producing and commissioning drier systems, and some of our senior personnel have been working with this since the Stord Bartz, and Atlas Stord days. The Drier has been developed and improved over the recent years, and AMOF Fjell has an ongoing production of these driers.
The AMOF-Fjell Thermal Disc Dryer is designed for heating by steam (max.10 bar) or hot water. The largest heating surface is the rotor, but additional heating surface is available as an option on the stator. The product to be dryed is slowly, but vigorously, transported from inlet- to outlet end by a paddle system mounted on the disc periphery. Product discharge is normally done continuously by a speed controlled extraction screw conveyor. The discs are mounted on a heavy central shaft with a highly efficient condensate removal system integrated. Scraper bars ensure agitation between the discs, which is necessary for efficient evaporation. The moisture evaporated from the product is collected in a high top vapour dome, and continuously removed.
Scoope of Supply
- Replacement rotors for existing disc dryer installations from all recognised OEMs.
- Complete AMOF-Fjell Thermal Disc Dryers with all necessary auxiliary equipment.
- Complete key ready process plants including feed hoppers, grinders, conveyors, pumps, steam/condensate equipment, vapour and dust handling systems, product discharge, pellets mills, storage and bagging systems.
- Associated process equipment like evaporators, coagulators, presses, decanters, tricanters and separators.
- All dryers can be designed for vacuum drying.
- All small dryers up to AF-TD-S 110 can be delivered for food processing meeting EHEDG guidelines.
The Fjell Stord Hot Air Dryer
A compact hot air dryer offering gentle final drying of sensitive protein products.
Amof-Fjell Process Technology AS has designed a test drier installed in a 20ft container. The drier is complete with control system, feed inlet and conveyor for dried product.
Drier has a range of operation options:
- Atmospheric drying
- Drying under vacuum
- Re-circulation of product
The drier is steam driven and can be delivered with a complete separate steam generator in 10ft container.
